Welded Steel Chains
Drag Chain
Offset Sidebar Chain
Straight Sidebar Chain«
| Chain Number |
Pitch |
Ave Ultimate Strength LBS |
Max Working Load LBS |

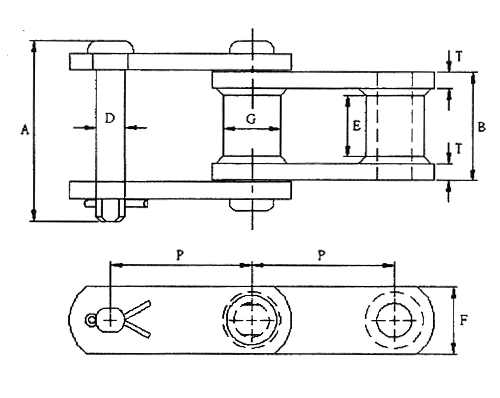

Dimensions - Inch |
Links pcs/ft |
Weight lbs/ft |
| Inch |
A |
B |
D |
T |
E |
F |
G |
| WRC188 |
2.609 |
20999 |
2998 |
2.637 |
1.574 |
0.500 |
0.251 |
1.062 |
1.125 |
0.874 |
4.6 |
3.696 |
| WHC188 |
2.609 |
23999 |
3498 |
2.637 |
1.574 |
0.500 |
0.251 |
1.062 |
1.125 |
0.874 |
4.6 |
3.696 |
| WRC78 |
3.075 |
20999 |
2998 |
3.090 |
2.000 |
0.500 |
0.251 |
1.125 |
1.259 |
0.874 |
3.9 |
4.004 |
| WHC78 |
3.075 |
23999 |
3498 |
3.090 |
2.000 |
0.500 |
0.251 |
1.125 |
1.259 |
0.874 |
3.9 |
4.004 |
| WRC82 |
3.075 |
25999 |
3799 |
3.405 |
2.244 |
0.563 |
0.251 |
1.259 |
1.259 |
0.562 |
3.9 |
5.500 |
| WHC82 |
3.075 |
39998 |
4499 |
3.405 |
2.244 |
0.563 |
0.251 |
1.259 |
1.259 |
0.562 |
3.9 |
5.500 |
| WRC131 |
3.075 |
45999 |
4998 |
3.937 |
2.244 |
0.752 |
0.374 |
1.259 |
1.259 |
1.125 |
3.9 |
6.798 |
| WHC131 |
3.075 |
59998 |
5698 |
3.937 |
2.244 |
0.752 |
0.374 |
1.259 |
1.259 |
1.125 |
3.9 |
6.798 |
| WRC124 |
4.000 |
45999 |
6298 |
4.429 |
2.755 |
0.752 |
0.374 |
1.625 |
1.500 |
1.437 |
3.0 |
8.492 |
| WHC124 |
4.000 |
59998 |
7348 |
4.429 |
2.755 |
0.752 |
0.374 |
1.625 |
1.500 |
1.437 |
3.0 |
8.492 |
| WRC111 |
4.760 |
45999 |
7508 |
4.980 |
3.374 |
0.752 |
0.374 |
2.244 |
1.500 |
1.437 |
2.6 |
8.404 |
| WHC111 |
4.760 |
59998 |
8848 |
4.980 |
3.374 |
0.752 |
0.374 |
2.244 |
1.500 |
1.437 |
2.6 |
2.6 |
| WRC106 |
6.000 |
45999 |
6749 |
4.429 |
2.755 |
0.752 |
0.374 |
1.625 |
1.500 |
1.259 |
2.0 |
6.996 |
| WHC106 |
6.000 |
59998 |
7849 |
4.429 |
2.755 |
0.752 |
0.374 |
1.625 |
1.500 |
1.259 |
2.0 |
6.996 |
| WRC132 |
6.050 |
83998 |
13079 |
6.692 |
4.374 |
1.000 |
0.500 |
3.000 |
2.000 |
1.625 |
2.0 |
13.398 |
| WHC132 |
6.050 |
99998 |
14999 |
6.692 |
4.374 |
1.000 |
0.500 |
3.000 |
2.000 |
1.625 |
2.0 |
13.398 |
|
