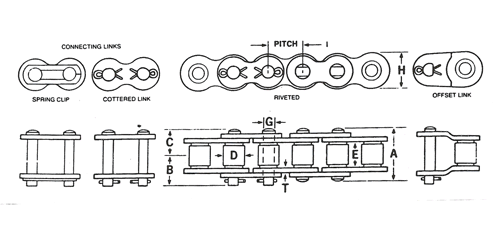

Chain No.	Pitch	Width			Roller		Pin. Diam.	Plate		Bearing Area Square Inches	Average Ult. Strength Lbs.	Average Weight Per Foot/Lbs.	Available
		Width			Roller		Pin. Diam.	Height	Nom. Thick.				Available
		A	B	C	D	E	G	H	T				Riveted	Cottered
35 SS	3/8	.48	.27	.24	.200	3/16	.141	.34	.050	.041	1,800	.2	X
41 SS	1/2	.54	.30	.27	.306	1/4	.141	.38	.050	.049	1,950	.3	X
40 SS	1/2	.63	.37	.31	5/16	5/16	.156	.45	.060	.067	3,100	.4	X
50 SS	5/8	.78	.44	.39	.400	3/8	.200	.56	.080	.106	5,500	.6	X
60 SS	3/4	.89	.61	.49	15/32	1/2	.234	.68	.094	.161	6,500	.9	X	X
80 SS	1	1.25	.75	.63	5/8	5/8	.312	.91	.125	.276	11,500	1.6	X	X
* Catalogue Dimensions may be subject to change or correction.
