ANSI Standard Single & Multiple Width Chains

2 Strand «
3 Strand

2 Strand

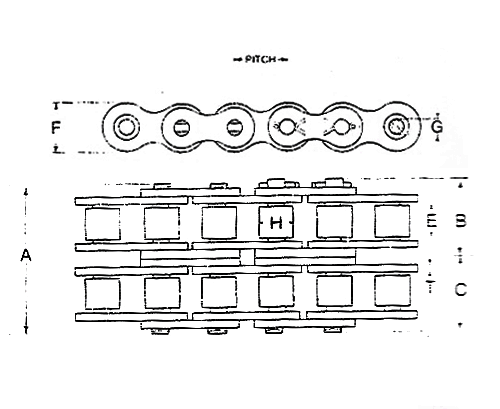

Dimensions, Strengths and Weights

Units: inches
ANSI Chain
No.
Pitch
Roller
Overall Width Riveted
From Pin End to Centre Line
From Pin Head to Centre Line
Side Plate
Pin. Diam.
Average Ultimate Strength
Average Weight Per Foot
Width
Diam.
Thickness
Height
E
H
A
B
C
T
F
G
Lbs
Lbs
*25-2
1/4
.125
.130
.56
.31
.28
.030
.23
.0905
1,850
.20
*35-2
3/8
.187
.200
.86
.50
.43
.050
.36
.141
4,200
.41
40-2
1/2
.312
.312
1.20
.67
.60
.060
.46
.156
7,400
.81
50-2
5/8
.375
.400
1.49
.82
.75
.080
.59
.200
12,200
1.35
60-2
3/4
.500
.468
1.87
1.02
.93
.094
.68
.234
17,000
1.90
80-2
1
.625
.625
2.42
1.32
1.21
.125
.93
.312
29,000
3.15
100-2
1 1/4
.750
.750
2.94
1.62
1.47
.156
1.16
.375
48,000
5.00
120-2
1 1/2
1.000
.875
3.72
2.04
1.86
.187
1.38
.437
68,000
7.10
140-2
1 3/4
1.000
1.000
4.00
2.19
2.00
.218
1.63
.500
92,000
9.50
160-2
2
1.250
1.125
4.80
2.63
2.40
.250
1.88
.562
116,000
12.00
180-2
2 1/4
1.406
1.406
5.40
2.94
2.70
.281
2.18
.687
160,000
17.60
200-2
2 1/2
1.500
1.562
5.86
3.28
2.93
.312
2.32
.781
190,000
21.00
240-2
3
1.875
1.875
7.22
4.00
3.61
.375
2.80
.937
260,000
33.10
* Non-Roller
