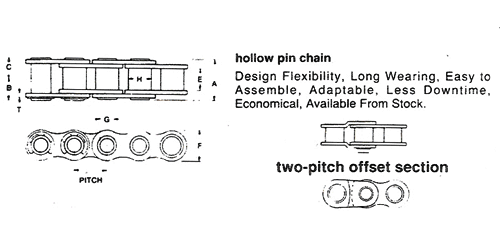

Hollow Pin Chains

Two-pitch Offset Section

Dimensions, Strengths & Weights

Units: inches
#
Chain No.
Pitch
Bushing
Overall Width
Conn. End to Centre Line
Riv. End to Centre Line
Link Plate
Hollow Pin Ins. Dia.
Average Ultimate Strength
Average Weight Per Ft.
Width
Diam.
Thick
Height
E
H
A
B
C
T
F
G
Lbs
Lbs
1
40 HP
1/2
.312
.312
.65
.37
.32
.060
.46
.158
2,500
.38
50 HP
5/8
.375
.400
.79
.46
.40
.080
.59
.203
3,700
.63
60 HP
3/4
.500
.469
.97
.57
.49
.094
.69
.237
6,100
.88
80 HP
1
.625
.625
1.22
.70
.61
.125
.93
.318
8,500
1.56
2
C2040 HP
1
.312
.312
.65
.37
.32
.060
.46
.158
2,500
.31
C2050 HP
1 1/4
.375
.400
.79
.46
.40
.080
.59
.203
3,700
.51
C2060 HP
1 1/2
.500
.469
.97
.57
.49
.094
.69
.237
6,100
.75
C2080 HP
2
.625
.625
1.22
.70
.61
.125
.88
.318
8,500
1.33
3
C2042 HP
1
.312
.625
.65
.37
.32
.060
.46
.158
2,500
.54
C2052 HP
1 1/4
.375
.750
.79
.46
.40
.080
.59
.203
3,700
.84
C2062 HP
1 1/2
.500
.875
.97
.57
.49
.094
.69
.237
6,100
1.20
C2082 HP
2
.625
1.125
1.22
.70
.61
.125
.88
.318
8,500
2.13
