Malleable Iron Chains

"400" Class Pintle
Combination
"H" Class Pintle «


"H" Class Pintle

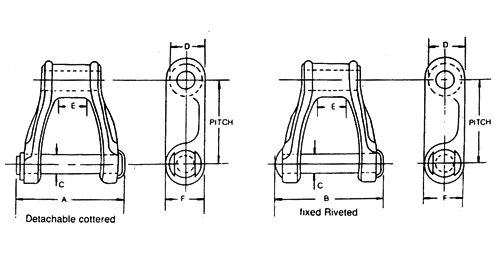

Dimensions & Strength of H class Mill Chains

Units: inches
Chain No.
Ave. Pitch In
No. of Links p/10 feet
Average Weight Per Foot / Lbs.
Max. Working Load in Lbs.
Average Ult. Strength Lbs.
Dimensions in Inches
m/m
inches
A
B
C
D
E
F
H-60
58.623
2.308
 52
2.1
1.1170
7,000
2 11/32
2 17/32
5/16
3/4
3/4
3/4
H-74
66.268
2.609
 46
3.0
1.580
10,000
3
2 7/8
3/8
8/7
1
1
H-78
66.268
2.609
 46
4.2
2.380
16,000
3 1/4
3 13/16
1/2
7/8
1 1/8
1 1/8
H-82
77.648
3.075
 39
5.5
3.080
20,000
4
3 7/8
9/16
7/32
1 1/4
1 1/4
H-124
101.600
4.000
 30
8.8
5.000
30,000
5 3/16
4 7/8
3/4
1 7/16
1 5/8
1 9/16
