Malleable Iron Chains

"400" Class Pintle
Combination «
"H" Class Pintle


Combination

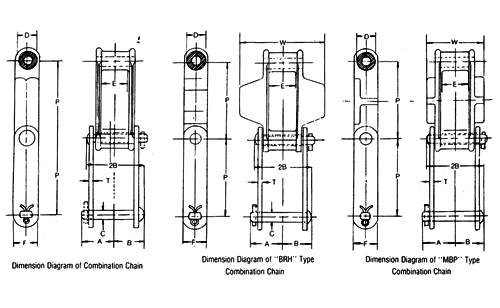

Dimensions & Strength of H class Mill Chains

Units: inches
Chain No.
Ave. Pitch In
No. of Links p/10 feet
Average Weight Per Foot/Lbs.
Max Working Load in Lbs.
Average Ult. Strength Lbs.
Dimensions in Inches
m/m
inches
A
B
C
D
E
F
T
 W
C-55
41.4
1.631
74
2.0
1,110
9,000
1 1/16
29/32
3/8
23/32
11/16
3/4
3/16
-
C-77
58.6
2.308
52
2.3
1.360
11,000
1 1/32
1 5/64
7/16
23/32
11/16
7/8
3/16
-
C-102B
101.6
4.000
30
6.8
4,000
24,000
2 1/4
2 7/32
5/8
1
2
1 1/2
3/8
-
C-102 1/2
102.6
4.040
30
9.7
5,550
36,000
2 1/2
2 9/32
3/4
1 3/8
2
1 3/4
3/8
-
C-110
152.4
6.000
20
6.0
4,000
24,000
2 5/16
2 5/32
5/8
1 9/32
1 15/16
1 1/2
3/8
-
C-111
120.9
4.760
25.5
9.8
5,950
36,000
2 21/32
2 21/32
3/4
1 7/16
2 3/8
1 3/4
3/8
-
C-131
78.1
3.057
39
6.5
3,220
24,000
1 29/3
2 23/32
5/8
1 1/4
1 1/8
1 1/2
3/8
-
C-132
153.7
6.050
20
14.5
8,330
50,000
3 3/8
3 1/8
1
1 25/32
3 1/8
2
1/2
-
C-188
66.2
2.609
46
3.6
1,950
14,000
1 13.32
1 9/32
1/2
8/8
15/16
1 1/8
1/4
-
BRH-188
66.3
2.609
46
3.6
1,950
14,000
1 13/32
1 9/32
1/2
7/8
15/16
1 1/8
1/4
3 1/8
MBP-132
153.7
6.050
20
16.1
8,330
50,000
3 3/8
1 1/8
1
1 25/32
3 1/8
2
1/2
3 7/8
