1 Strand

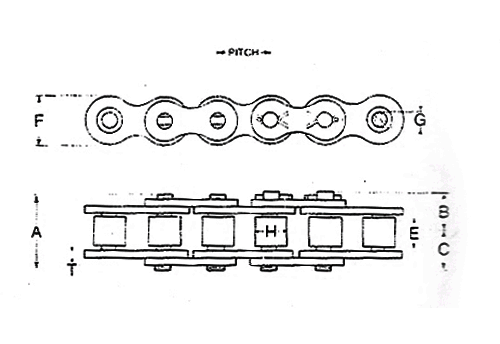

Dimensions, Strengths and Weights

Units: inches
ANSI Chain
No.
Pitch
Roller
Overall Width Riveted
From Pin End to Centre Line
From Pin Head to Centre Line
Side Plate
Pin. Diam.
Average Ultimate Strength
Average Weight Per Foot
Width
Diam.
Thickness
Height
E
H
A
B
C
T
F
G
Lbs
Lbs
*25
1/4
.125
.130
.31
.19
.15
.030
.23
.0905
925
.104
*35
3/8
.187
.200
.47
.34
.23
.050
.36
.141
2,100
.21
41
1/2
.250
.306
.51
.37
.26
.050
.39
.141
2,000
.28
40
1/2
.312
.312
.65
.42
.32
.060
.46
.156
3,700
.41
50
5/8
.375
.400
.79
.56
.40
.080
.59
.200
6,100
.69
60
3/4
.500
.468
.98
.64
.49
.094
.68
.234
8,500
.96
80
1
.625
.625
1.28
.74
.64
.125
.93
.312
14,500
1.60
100
1 1/4
.750
.750
1.54
.91
.77
.156
1.16
.375
24,000
2.56
120
1 1/2
1.000
.875
1.94
1.14
.97
.187
1.38
.437
34,000
3.60
140
1 3/4
1.000
1.000
2.08
1.22
1.04
.218
1.63
.500
46,000
4.90
160
2
1.250
1.125
2.48
1.46
1.24
.250
1.88
.562
58,000
6.40
180
2 1/4
1.406
1.406
2.81
1.74
1.40
.281
2.13
.687
80,000
8.70
200
2 1/2
1.500
1.562
3.02
1.86
1.51
.312
2.32
.781
95,000
10.30
240
3
1.875
1.875
3.76
2.27
1.88
.375
2.80
.937
130,000
16.9
* Non-Roller
