Malleable Iron Chains

"400" Class Pintle «
Combination
"H" Class Pintle


"400" Class Pintle

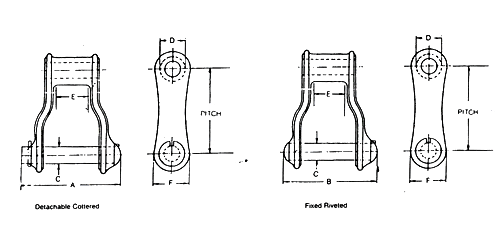

Dimensions & Strength of H class Mill Chains

Units: inches
Chain No.
Ave. Pitch In
No. of Links p/10 feet
Average Weight Per Food / Lbs.
Max Working Load in
Average Ult. Strength Lbs.
Dimensions in Inches
m/m
inches
A
B
C
D
E
F
442
34.9
1.375
 88
1.4
830
6,000
2
1 27/32
5/16
9/16
5/8
3/4
445
41.4
1.630
 74
1.5
830
6,000
2
1 27/32
5/16
5/8
11/16
3/4
452
38.3
1.506
 80
2.0
970
7,000
2 7/32
2 21/32
3/8
11/16
5/8
27/32
455
41.4
1.630
 74
1.9
1,060
7,300
2 9/32
2 1/8
3/8
5/8
11/16
27/32
462
41.5
1.634
 73
2.5
1,500
9,000
2 9/16
2 1/2
7/16
23/32
13/16
15/16
467 58.6 2.038 52
1.4
950
6,000
2 7/32
2 1/8
5/16
21/32
3/4
25/32
477 58.6 2.038 52
2.0
1,400
9,600
2 17/32
2 7/32
7/16
13/16
11/16
1
488 66.3 2.609 46
2.9
1,800
11,000
3 15/16
2 29/32
7/16
7/8
15/16
15/16
4103 78.1 3.075 39
5.7
3,500
22,000
3 7/16
3 5/16
3/4
1 7/32
1 1/8
1 1/2
4124 103.2 4.063 30
8.5
4,560
3,300
4 3/4
4 15/32
13/16
1 23/32
1 1/4
1 1/2
400 class pintle chains, like detachable chains, are very popular chains for drives, light conveyers and light-duty elevators.
